  • Product Name： MS2-Z5F
    Product Model： MS2-Z5F
    Product Number： MS2-Z5F
    Products：

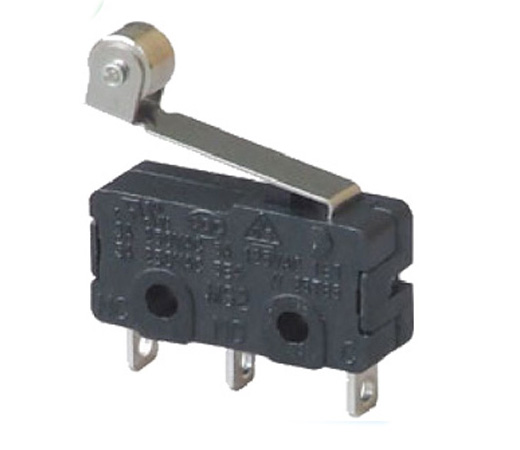

    Subminiature Micro Switch

    Magnetic Switch Characteristic:

    (1)A variety of levers

    (2)Long life, high reliability

    (3)A variety of contact terminals

    (4)Adopt thermosetting plastic or thermoplastic

    (5)A variety of models with low operating force to high operating force are available.

    (6)Nice appearance, tight configuration, small contact clearance, quick action, high sensitivity and small operating travel.

    Detector Micro Switch Application:

    Widely used in home appliance, electronic equipment, automatic machine, communication equipment, car electron, apparatus and instrument etc.

Download

Technical parameters

  • Specification

    Item

    Value

    Operating Speed

    0.1mm~1m/s(Related with actuator forms)

    Operating Frequency

    Mechanical 60 cycles/min;Electrical 30 cycles/min

    Insulation Resistance

    ≥100 MΩ (500VDC)

    Contact resistance

    OF>0.5N:≤30mΩ(see note)

    OF≤0.5N:≤50 mΩ(see note)





    Test Voltage

    Between terminals of the same polarirty

    AC1000V,50/60Hz,1min

    Between current-carrying metal

    And ground(case),and between

    Each terminal and non-carrying

    metal parts



    AC1500V,50/60Hz,1min

    Vibration resistance

    10-55Hz,1.5mm Double amplitude



    Shork Resistance

    Destruction : OF>0.5N:1000m/s ²(approx.100G)max

               OF<=0.5N:500m/s ²(approx.50G)max

    Malfunction: OF>0.5N:300m/s ²(approx.30G)max

               OF<=0.5N:200m/s ²(approx.20G)max

    Life Expectancy

    Mechnical>=1000000 cycles

    Electrical>=50000 cycles

    Degree of protection

    IEC IP40

    Degree of protection against electric shock

    Class I

    PTI (Tracking Resistance)

    175

    Ambient air temperature

    -25~+85℃ 60%RH below(No ice and dew)

    Ambient air humidity

    85% RHbelow(about +5~+35℃)

    Weight

    Approx.1.6g(No lever)

    Notes:Shows the operating force of no lever
