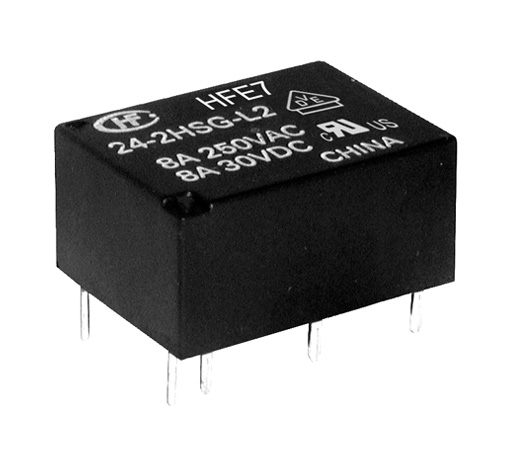

Product Information |
|
1.CONTACT DATA |
|
Contact arrangement |
1A,1B |
2A,2B,1A+1B |
|
Contact resistance |
Gold AgNi plated:30mΩ(at 1A 6VDC)
No gold AgNi plated:50mΩ(at 1A 6VDC) Gold AgSnO2 plated:60mΩ(at 1A 6VDC) No gold AgSnO2 plated:80mΩ(at 1A 6VDC) |
|
Contact material |
AgSnO2,AgNi |
|
Contact ratings(Res.load) |
10A250VAC/30VDC |
8A250VAC/30VDC |
|
Max.switching Voltage |
277VAC |
277VAC |
|
Max.switching Current |
10A |
8A |
|
Max.switching power |
2500VA |
2000VA |
|
Mechanical endurance |
10000000 OPS |
|
Electrical endurance |
100000 OPS(2 Form A: 30000 OPS) |
|
|
|
|
|
2.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500 VDC) |
|
Dielectric Strength |
Between coil & contacts |
4000 VAC 1min |
|
Between open contacts |
1000 VAC 1min |
|
Pulse width of coil |
50ms min. (Recommend:100ms to 200 ms) |
|
Operate time(at nomi.volt.) |
10ms max. |
|
Release (Reset)time(at nomi.volt.) |
10ms max. |
|
Max.operate frequency(under rated load) |
20 cycles/min |
|
Temperature rise(at nomi.volt.) |
50K max. |
|
Vibration resistance |
10Hz to 55Hz 1.5mm DA |
|
Shock resistance |
98m/s2 |
|
Humidity |
5% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 70℃ |
|
Termination |
PCB |
|
Unit Weight |
Approx.6g |
|
Construction |
Plastic sealed,Flux proofed |
|
|
|
|
3.Coil |
|
Coil power |
1 Form A,1A+1B Single side stable |
200mW |
|
1 coil latching |
200mW |
|
2 Form A Single side stable |
280mW |
|
2 coils latching |
280mW |
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Sample lead time: 4-5 weeks |
|
Sample fee and freight should be paid by buyers |
|
Packing detail |
1000 pcs per carton |
|
Carton size:(54×20×14)cm |
|
|
|
Bulk lead time |
35 days after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union |
