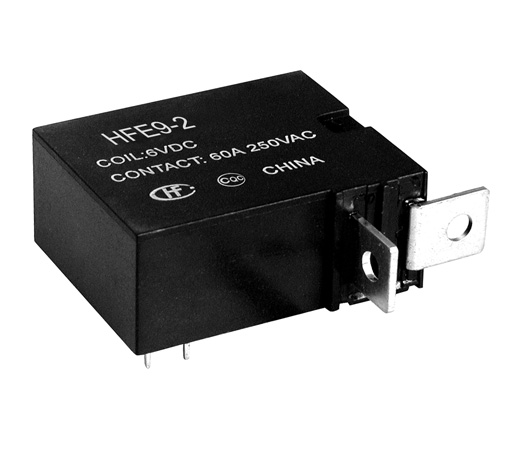

Product Information |
|
1.CONTACT DATA |
|
Contact arrangement |
1A,1B |
|
Contact resistance |
2mΩ(at 1A 24VDC) |
|
Contact material |
AgSnO2,AgCdO |
|
Contact ratings(Res.load) |
60A 250VAC |
50A 250VAC |
40A 250VAC |
|
5000 OPS |
10000 OPS |
100000 OPS |
|
Max.switching Voltage |
250 VAC |
|
Max.switching Current |
60A |
|
Max.switching power |
15000VA |
|
Mechanical endurance |
10000000 OPS;Meter: 10000 OPS |
|
Electrical endurance |
100000 OPS(At 40A 250VAC |
|
|
|
|
|
|
2.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500 VDC) |
|
Dielectric Strength |
Between coil & contacts |
|
4000 VAC 1min |
|
Between open contacts |
|
1500 VAC 1min |
|
Creepage distance |
8mm |
|
Operate time(at nomi.volt.) |
20ms max. |
|
Release time(at nomi.volt.) |
20ms max. |
|
Vibration resistance |
|
10Hz to 55Hz 1.5mm DA |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Humidity |
98% RH,40 °C |
|
Ambient temperature |
under 40 °C to 70°C |
|
Termination |
QC |
|
Unit Weight |
Approx.33g |
|
Construction |
Wash tight,Flux proofed |
|
|
|
|
|
3.Coil |
|
Coil Power |
1 coil latching |
1.0W |
|
2 coils latching |
2.0W |
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Sample lead time: 4-5 weeks |
|
Sample fee and freight should be paid by buyers |
|
Packing detail |
200 pcs per carton |
|
Carton size:(34.5*28.5*23.5))cm |
|
Gross Weight 7.6kg |
|
Bulk lead time |
35 days after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union |
