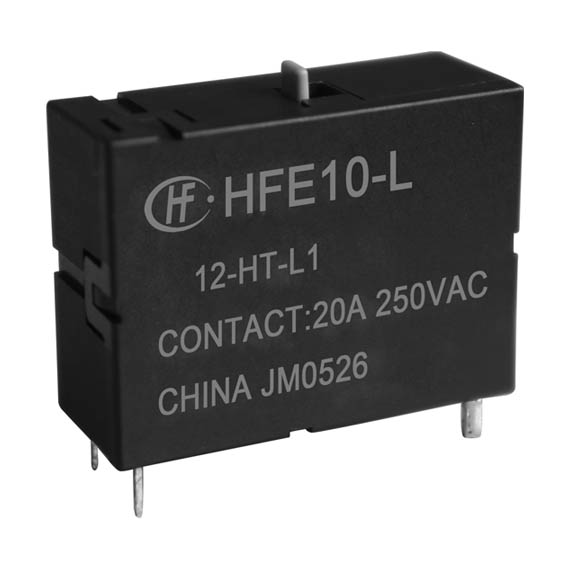

Product Information |
|
1.CONTACT DATA |
|
Contact arrangement |
1A,1B |
|
Contact resistance |
1.5mΩ(at 1A 6VDC) |
|
Contact material |
AgSnO2 |
|
Contact rating |
1A,1B: 40A 250VAC,30000 OPS(Resistive) 5000W 220VAC,30000 OPS(Incandescent lamp) 3800W 250AVC,30000 OPS(Electronic ballast) |
|
Max.switching Voltage |
440 VAC |
|
Max.switching Current |
40A |
|
Max.switching power |
15000VA |
|
Max. continuous current |
20A |
|
Mechanical endurance |
1000000 OPS |
|
Electrical endurance |
30000 OPS |
|
|
|
|
|
|
2.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500 VDC) |
|
Dielectric Strength |
Between coil & contacts |
|
4000 VAC 1min |
|
Between open contacts |
|
1500 VAC 1min |
|
Creepage distance(input and output) |
8mm |
|
Operate time(at nomi.volt.) |
15ms max. |
|
Release time(at nomi.volt.) |
15ms max. |
|
Max.operate frequency |
20 cycles/min |
|
Vibration resistance |
10Hz to 55Hz 1.5mm DA |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Humidity |
5% to 85% RH |
|
Ambient temperature |
under 40 °C to 85°C |
|
Termination |
PCB |
|
Unit Weight |
Approx.32g |
|
Construction |
Plastic sealed |
|
|
|
|
|
3.Coil |
|
Coil Power |
single coil latching |
Approx.1.5W |
|
double coils latching |
Approx.3.0W |
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Sample lead time: 4-5 weeks |
|
Sample fee and freight should be paid by buyers |
|
Packing detail |
400 pcs per carton |
|
Carton size:(37*26*25))cm |
|
Gross Weight 13.1kg |
|
Bulk lead time |
35 days after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union |
