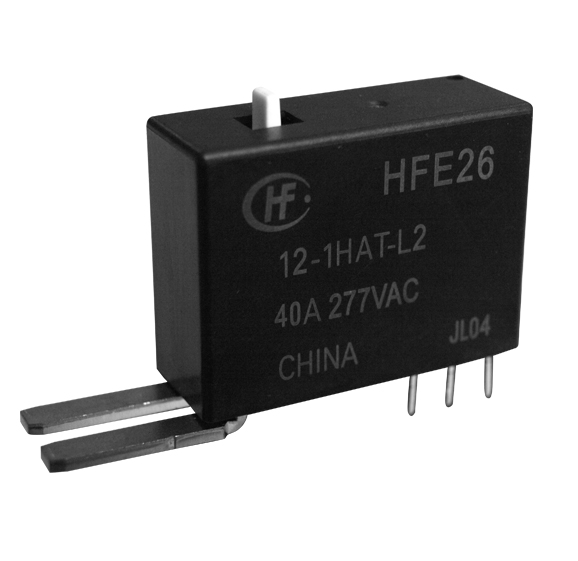

Product Information |
|
1.CONTACT DATA |
|
Contact arrangement |
1A,1C |
|
Contact resistance |
2mΩ(at 1A 24VDC) |
|
Contact material |
AgSnO2 |
|
Contact ratings |
1C: 25A 250VAC |
|
1A:40A 250VAC |
|
Max.switching Voltage |
250 VAC |
|
Max.switching Current |
40A |
|
Max.switching power |
10000VA |
|
Mechanical endurance |
1000000 OPS |
|
|
Meter:30000 OPS |
|
|
|
|
|
|
|
|
|
|
|
2.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500 VDC) |
|
Dielectric Strength |
Between coil & contacts |
|
4000 VAC 1min |
|
Between open contacts |
|
1500 VAC 1min |
|
Creepage distance |
8mm |
|
Operate time(at nomi.volt.) |
10ms max. |
|
Release time(at nomi.volt.) |
10ms max. |
|
Vibration resistance |
|
10Hz to 55Hz 1.5mm DA |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Humidity |
98% RH,40 ℃ |
|
Ambient temperature |
under 40 ℃ to 70℃ |
|
Storage temperature |
under 40 ℃ to 100℃ |
|
Termination |
PCB&QC |
|
Unit Weight |
Approx.36g |
|
Construction |
Dust Protected |
|
|
|
|
|
3.Coil |
|
Coil Power |
25A: Signal coil latching Approx: |
1.0W |
|
Double Coisls Latching |
2.0W |
|
40A:Single Coil Latching |
1.5W |
|
Double Coisls Latching |
3.0W |
|
|
|
|
|
