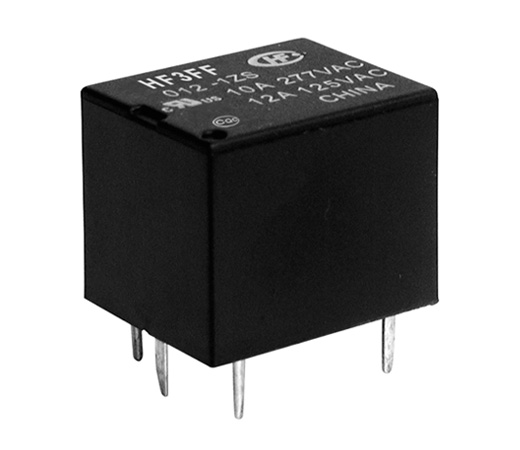

Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E134517 |
|
VDE,File No.:40025218 |
|
TUV,File No.:R50148356 |
|
CQC,File No.:CQC08002027861 |
|
|
|
|
|
2.Features |
|
1.15A switching capability |
|
2.1 Form A and 1 Form C configurations |
|
3.Subminiature,standard PCB layout |
|
4.Plastic sealed and flux proofed types available |
|
5.Environmental friendly product(RoHS compliant) |
|
6.Outline Dimensions:(19.0*15.2*15.5)mm |
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1C |
1A |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact material |
AgSnO2,AgCdO |
|
Contact rating (Res.load) |
10A 277VAC/28VDC |
|
Max.switching voltage |
250VAC/30VDC |
|
Max.switching current |
15A |
10A |
|
Max.switching power |
2770VA/210W |
|
Mechanical endurance |
10000000 OPS |
|
Electrical endurance |
100000 OPS(NO,at 7A 250VAC) 50000 OPS(NO,at 10A 250VAC) |
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coul&contacts |
1500VAC 1 min |
|
Between open contacts |
750VAC 1 min |
|
Operate time(at nomi.volt) |
10ms max. |
|
Release time(at nomi.volt) |
5ms max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 50Hz 1.5mm DA |
|
Humidity |
35% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 70℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.10g |
|
Construction |
Plastic sealed Flux proofed |
|
|
|
|
|
5.Coil |
|
Coil Power |
5VDC to 24VDC:360mW;48VDC: 510mW |
|
|
|
|
|
6.SAFETY APPROVAL RATINGS |
|
UL/CUL |
1 Form A |
10A 277VAC/28VDC TV-5 120VAC 15A 125VAC 12A 125VAC 1/2HP 125VAC |
|
1 Form C |
10A 277VAC/28VDC 10A 120VAC 1/2HP 125/250VAC |
|
VDE(AgSnO2) |
1 Form A |
10A 250VAC 12A 125VAC |
|
1 Form C |
5A 250VAC NO:10A 250VAC NO:12A 125VAC |
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Samples are available |
|
Sample lead time: 1-2 weeks |
|
Packing detail |
1000 pcs per carton |
|
Carton size:(36×24×16 )cm |
|
Gross Weight 12kg |
|
Bulk lead time |
3-4 weeks after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal |
