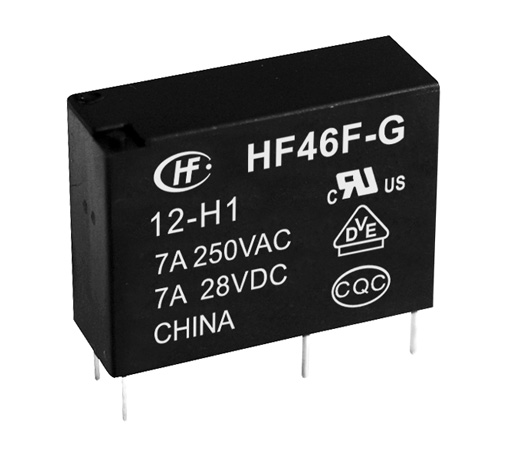

Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E134517 |
|
VDE,File No.:40025215 |
|
CQC,File No.:CQC08001024932 |
|
|
|
|
|
2.Features |
|
1.10A switching capability |
|
2.10kV impluse withstand voltage( Between coil and contacts) |
|
3.Type 2 meets VDE 0700,0631 reinforce insulation |
|
4.Highly efficients magnetic circuit for high sensitivity:200mW |
|
5.Extremely small footprint utlizing PCB area |
|
6.Environmental friendly product(RoHS compliant) |
|
7.Outline Dimensions:(20.5*7.2*15.3)mm |
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1A |
|
Contact resistance |
100mΩ(at 1A 24VDC) |
|
Contact material |
AgSnO2,AgNi |
|
Contact rating (Res.load) |
7A 250VAC/28VDC |
|
Max.switching voltage |
277VAC/30VDC |
|
Max.switching current |
10A |
|
Max.switching power |
2770VA/300W |
|
Mechanical endurance |
5000000 OPS |
|
Electrical endurance |
60000 OPS |
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coil&contacts |
4000VAC 1 min |
|
Between open contacts |
1000VAC 1 min |
|
Surge voltage(between coil & contacts) |
10kV(1.2*50us) |
|
Operate time(at nomi.volt) |
10ms max. |
|
Release time(at nomi.volt) |
10ms max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 50Hz 1.5mm DA |
|
Humidity |
98% 40 ℃ |
|
Ambient temperature |
under 40 ℃ to 85℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.3g |
|
Construction |
Flux proofed,Plastic sealed |
|
|
|
|
|
5.Coil |
|
Coil Power |
200mW |
|
|
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Samples are available |
|
Sample lead time: 1-2 weeks |
|
Packing detail |
1500 pcs per carton |
|
Carton size:(34×28×21 )cm |
|
Gross Weight 7.5kg |
|
Bulk lead time |
3-4 weeks after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal |
