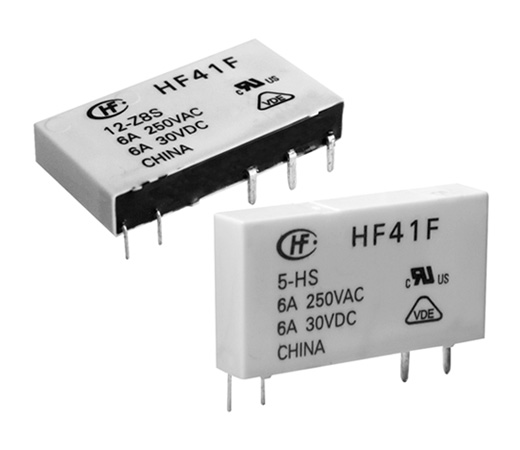

Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E133481 |
|
VDE,File No.:40020043 |
|
CQC,File No.:CQC09002035072 |
|
|
|
|
|
2.Features |
|
1.Slim size(width 5mm) |
|
2.High breakdown voltage 4kV( Between coil and contacts) |
|
3.Meeting VDE 0700,0631 reinforce insulation |
|
4.Surge voltage up to 6kV(Between coil and contacts) |
|
5.High sensitive:170mW |
|
6.1 Form A and 1 Form C configurations |
|
7.Sockets available |
|
7.Environmental friendly product(RoHS compliant) |
|
8.Outline Dimensions:(28.0*5.0*15.0)mm |
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1A.1C |
|
Contact resistance |
100mΩ(at 1A 6VDC) Gold plated:30mΩ(at 1A 6VDC) |
|
Contact material |
AgSnO2,AgNi |
|
Contact rating (Res.load) |
6A 250VAC/30VDC |
|
Max.switching voltage |
400VAC/125VDC |
|
Max.switching current |
6A |
|
Max.switching power |
1500VA/180W |
|
Mechanical endurance |
10000000 OPS |
|
Electrical endurance |
1A: 60000 OPS AT 85℃ 1C:(NO)30000 OPS at 85℃ (NC)10000 OPS at 85℃ |
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coil&contacts |
4000VAC 1 min |
|
Between open contacts |
1000VAC 1 min |
|
Operate time(at nomi.volt) |
8ms max. |
|
Release time(at nomi.volt) |
4ms max. |
|
Temperature rise(at nomi.volt.) |
70K max. |
|
Shock resistance |
Functional |
49m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 50Hz 1mm DA |
|
Humidity |
5% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 85℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.5.4g |
|
Construction |
Plastic sealed,Flux proofed |
|
|
|
|
|
5.Coil |
|
Coil Power |
5VDC to 24VDC: 170mW 48VDC,60VDC:210mW |
|
|
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Samples are available |
|
Sample lead time: 1-2 weeks |
|
Packing detail |
2000 pcs per carton |
|
Carton size:(60×19×14 )cm |
|
Gross Weight 14.5kg |
|
Bulk lead time |
3-4 weeks after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal |
