Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E133481 |
|
VDE,File No.:R50149334 |
|
|
|
|
|
2.Features |
|
1.5A switching capability |
|
2.3kV dielectric strength( Between coil and contacts) |
|
3.Slim size(width 5mm,height 12.5mm) |
|
4.High sensitive:Min.120mW |
|

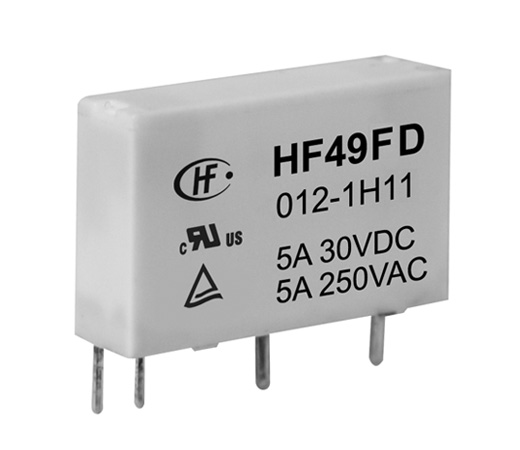

5.HF49FD's terminals compatible with HFS8(output module) and HFS20 SSR |
|
6.Sockets available |
|
7.Environmental friendly product(RoHS compliant) |
|
8.Outline Dimensions:(20.0*5.0*12.5)mm |
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1A |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact material |
AgSnO2,AgNi |
|
Contact rating (Res.load) |
5A 250VAC/30VDC |
|
Max.switching voltage |
250VAC/30VDC |
|
Max.switching current |
5A |
|
Max.switching power |
1250VA/150W |
|
Mechanical endurance |
20000000 OPS |
|
Electrical endurance |
100000 OPS |
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coil&contacts |
3000VAC 1 min |
|
Between open contacts |
1000VAC 1 min |
|
Operate time(at nomi.volt) |
10ms max. |
|
Release time(at nomi.volt) |
5ms max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 50Hz 1.5mm DA |
|
Humidity |
5% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 85℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.3g |
|
Construction |
Plastic sealed |
|
|
|
|
|
5.Coil |
|
Coil Power |
120mW to 180mW |
|
|
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Samples are available |
|
Sample lead time: 1-2 weeks |
|
Packing detail |
3000 pcs per carton |
|
Carton size:(60×18×18 )cm |
|
Gross Weight 12kg |
|
Bulk lead time |
3-4 weeks after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal |
