Technical parameters

• Product Information
  1.Certificates and File No.
  UL,File No.: E134517
  VDE,File No.:116934
  CQC,File No.: CQC08002028130
  2.Features
  1.Low height:15.7mm
  2.High inrush: TV-5 80A(NO contact,at 125VAC)
  3.5kV dielectric strength(between coil and contacts)
  4.Creepage distance:10mm
  5.Meeting VDE 0700,0631 reinforce insulation
  6.Product in accordance to IEC 60335-1 available
  7.Socket available
  8.Plastic Sealed and flux proofed types available
  9.Environmental friendly product(RoHS compliant)

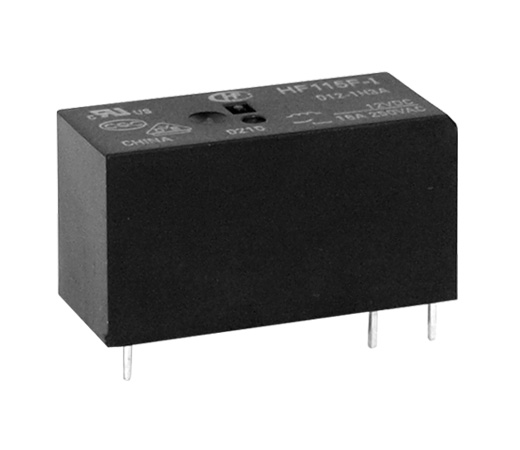

  10.Outline Dimensions:(29.0*12.7*15.7)mm
  3.Contact Data
  Arrangement	1A,1C
  Contact resistance	100mΩ(at 1A 6VDC)
  Contact material	AgSnO2
  Contact rating       (Res.load)	16A 250VAC
  Max.switching voltage	440VAC/125VDC
  Max.switching current	16A
  Max.switching power	4000VA
  Mechanical endurance	10000000 OPS
  Electrical endurance	100000 OPS(See approval reports for more details)
  4.CHARACTERISTICS
  Insulation resistance		1000mΩ(at 500VDC)
  Dielectric strength	Between coil&contacts	5000VAC 1 min
  	Between open contacts	1000VAC 1 min
  Surge voltage    (between coil&contacts)	10kV(1.2*50us)
  Operate time(at nomi.volt)		15ms max.
  Release time(at nomi.volt)		8ms max.
  Temperature rise(at nomi.volt.)	55K max.
  Shock resistance	Functional	98m/s2
  	Destructive	980m/s2
  Vibration resistance		10Hz to 50Hz 20g/5g
  Humidity		35% to 85% RH
  Ambient temperature		under 40 ℃ to 85℃
  Temination		PCB
  Unit weight		Approx.13.5g
  Construction		Plastic sealed               Flux proofed
  5.Coil
  Coil Power	400mW
  Shipping & Payment
  MOQ	1000 PCS
  Samples	Samples are available
  	Sample lead time: 1-2 weeks
  Packing detail	500 pcs per carton
  	Carton size:(39×29×24  )cm
  	Gross Weight 9kg
  Bulk lead time	3-4 weeks after sample confirmed and deposit paid
  Delivery clause	FOB Xiamen
  Terms of payment	T/T,Western Union,Paypal
