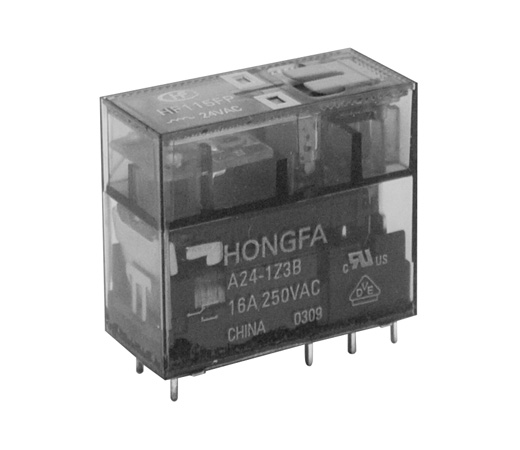

Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E134517 |
|
VDE,File No.:116934 |
|
|
|
|
|
2.Features |
|
1.PCB Termination |
|
2.1 pole 16A,2 POLE 8A,1CO&2CO contacts |
|
3.5kV dielectric,Creepage distance 8mm(coil to contacts) |
|
4.Meeting VDE 0700,0631 reinforce insulation |
|
5.DC/AC coil type relay,Coil power 400mW/0.75va |
|
6.Manual test device |
|
7.Type with mechanical indicator/electrical indicator |
|
8.Sockets available |
|
9.Environmental friendly product(RoHS compliant) |
|
10.Outline Dimensions:(29.0*13.0*25.5)mm |
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1C |
2C |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact material |
AgNi |
|
Contact rating (Res.load) |
16A 250VAC |
8A 250VAC |
|
Max.switching voltage |
440VAC |
|
Max.switching current |
16A |
8A |
|
Max.switching power |
4000VA |
2000VA |
|
Mechanical endurance |
5000000 OPS |
|
Electrical endurance |
See approval reports for more details |
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coil&contacts |
5000VAC 1 min |
|
Between open contacts |
1000VAC 1 min |
|
Between contact sets |
2500VAC 1 min |
|
Operate time(at nomi.volt) |
15ms max. |
|
Release time(at nomi.volt) |
8ms max. |
|
Temperature rise(at nomi.volt.) |
70K max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
NO |
10Hz to 50Hz 10g |
|
NC |
Length direction10Hz to 50Hz 2g |
|
Other direction10Hz to 50Hz 5g |
|
Humidity |
35% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 70℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.16g |
|
Mounting distance |
5mm,packing of sockets |
|
|
|
|
|
5.Coil |
|
Coil Power |
DC type: 400mW;AC type:0.75VA |
|
|
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Samples are available |
|
Sample lead time: 1-2 weeks |
|
Packing detail |
500 pcs per carton |
|
Carton size:(39×29×24 )cm |
|
Gross Weight 11kg |
|
Bulk lead time |
3-4 weeks after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal |
