Product Information |
|
1.Certificates and File No. |
|
UL,File No.: E134517 |
|
VDE,File No.:40031203 |
|
|
|
|
|
2.Features |
|
1.20A switching capability |
|
2.1 Form A and 1 Form C configurations |
|
3.Subminiature,standard PCB layout |
|
4.High temperature load:17A 277VAC at 105 ℃ |
|
5.Plastic Sealed and flux proofed types available |
|
6.Product in accordance to IEC 60335-1 available |
|
7.Double pins and single pin terminal available,effectively reduce terminal temperature rise |
|
8.Ambient temperature meets 105 ℃ |
|
9.Environmental friendly product(RoHS compliant) |
|

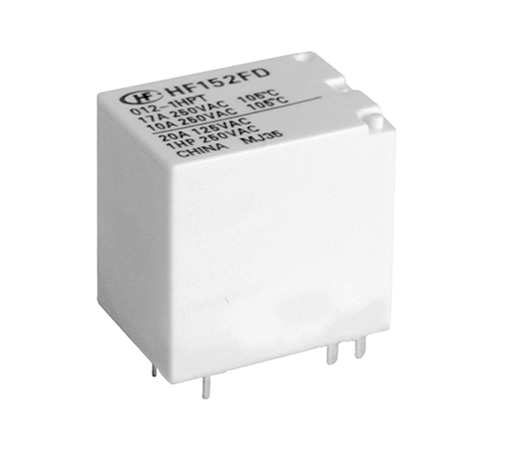

10.Outline Dimensions:(21.0*16.0*20.6)mm |
|
|
|
|
|
3.Contact Data |
|
Arrangement |
1C |
1A |
|
Contact resistance |
100mΩ(at 1A 24VDC) |
|
Contact material |
AgSnO2,AgNi |
|
Contact rating (Res.load) |
20A 125VAC 17A 277VAC 7A 400VAC |
NO:17A277VAC NC:10A277VAC |
|
Max.switching voltage |
400VAC |
400VAC(NO) |
|
Max.switching current |
20A |
17A |
|
Max.switching power |
4700VA |
4700VA |
|
Mechanical endurance |
10000000 OPS |
|
Electrical endurance |
100000 OPS |
50000 OPS |
|
|
|
|
|
4.CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coul&contacts |
2500VAC 1 min |
|
Between open contacts |
1000VAC 1 min |
|
Surge voltage (between coil&contacts) |
6kV(1.2*50us) |
|
Operate time(at nomi.volt) |
10ms max. |
|
Release time(at nomi.volt) |
5ms max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 50Hz 1.5mm DA |
|
Humidity |
5% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 105℃ |
|
Temination |
PCB |
|
Unit weight |
Approx.14g |
|
Construction |
Plastic sealed Flux proofed |
|
|
|
|
|
5.Coil |
|
Coil Power |
360mW |
|
|
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Samples are available |
|
Sample lead time: 1-2 weeks |
|
Packing detail |
500 pcs per carton |
|
Carton size:(45×30×22 )cm |
|
Gross Weight 8.3kg |
|
Bulk lead time |
3-4 weeks after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal |
