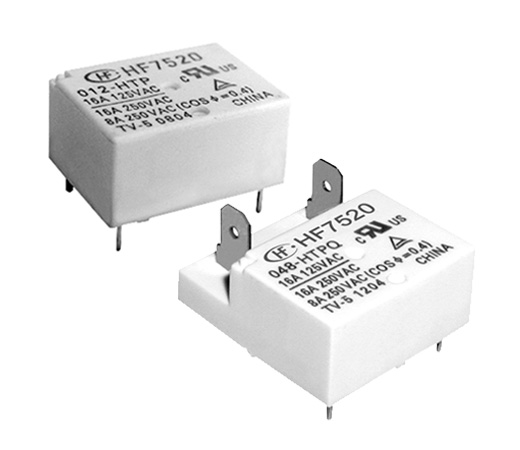

Contact Data |
|
Arrangement |
1C |
1A |
|
Contact resistance |
100mΩ(at 1A 6VDC) |
|
Contact material |
See ordering info. |
|
Contact rating (Res.load) |
No: 10A 125/250VAC NC:6A 125/350VAC |
Standard type: TV-5 10A 30VDC 10A 125/250VAC |
|
High Capacity type: TV-5 10A 30VDC 16A 125/250VAC 8A 250VAC(COSØ=0.4) |
|
Max.switching voltage |
250VAC |
250VAC/30VDC |
|
Max.switching current |
NO:10A NC:6A |
16A |
|
Max.switching power |
NO:2500VA NC:1500VA |
4000VA/300W |
|
Mechanical endurance |
10000000 OPS |
|
Electrical endurance |
50000 OPS |
|
|
|
|
|
CHARACTERISTICS |
|
Insulation resistance |
1000mΩ(at 500VDC) |
|
Dielectric strength |
Between coul&contacts |
2500VAC 1 min |
|
Between open contacts |
1000VAC 1 min |
|
Operate time(at nomi.volt) |
15ms max. |
|
Release time(at nomi.volt) |
5ms max. |
|
Shock resistance |
Functional |
98m/s2 |
|
Destructive |
980m/s2 |
|
Vibration resistance |
10Hz to 50Hz 1.5mm DA |
|
Humidity |
5% to 85% RH |
|
Ambient temperature |
under 40 ℃ to 105℃ |
|
Temination |
1C: PCB 1A: PCB & QC |
|
Unit weight |
Approx.8g |
|
Construction |
Plastic sealed Flux proofed |
|
|
|
|
|
Coil |
|
Coil Power |
1 Form A:200mW |
1 Form C:400mW |
|
|
|
Shipping & Payment |
|
MOQ |
1000 PCS |
|
Samples |
Samples are available |
|
Sample lead time: 1-2 weeks |
|
Packing detail |
1000 pcs per carton |
|
Carton size:(37*26*28))cm |
|
Gross Weight 10.5kg |
|
Bulk lead time |
3-4 weeks after sample confirmed and deposit paid |
|
Delivery clause |
FOB Xiamen |
|
Terms of payment |
T/T,Western Union,Paypal |
